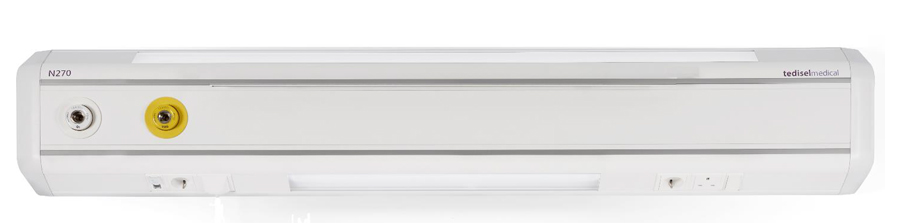

Horizontal bed head unit(N270 modular with light)

CHARACTERISTICS

Configuration : Horizontal, modular
Other Characteristics : with light

DESCRIPTION

This is the most successful bed head unit that Tedisel Medical has designed. An old model that still today is up to date specially thanks to the last restyling done in 2009. Price-quality wise is the best choice for wards and critical areas to be equipped with direct light, indirect light and medical gases.

One aluminium profile with 3 compartments, for direct light and mechanisms, medical gases and indirect light.

Internal access to the unit is performed through clipped covers, which allows easy access and the possibility to expand or reduce unit equipment easily.

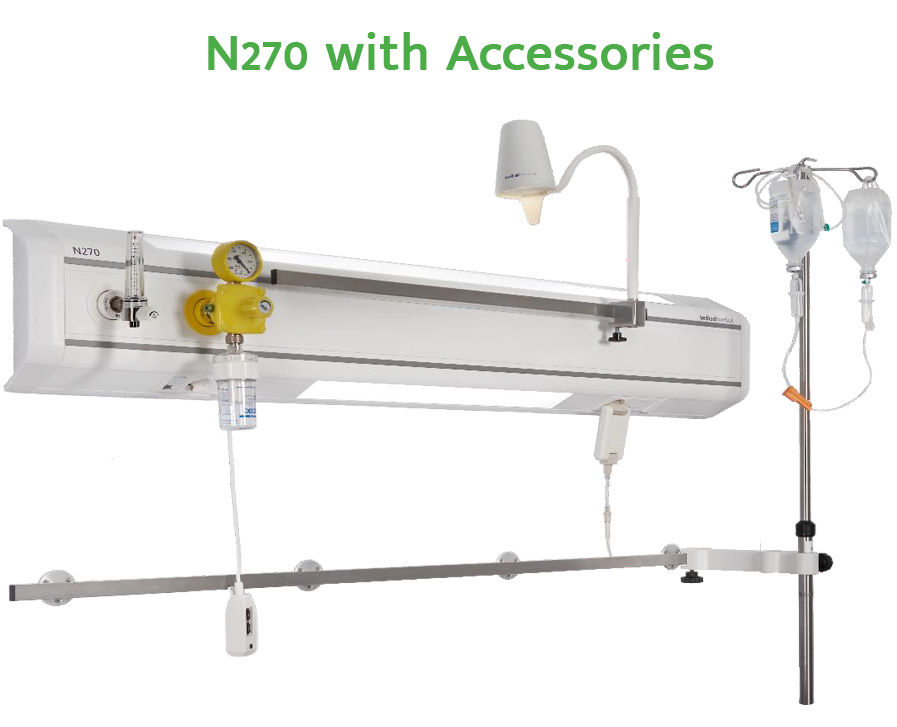

Two decorative stripes along the unit act as provision for technical rails to be fixed in the profile above and below medical gases cover.
Any medical gas standard can be installed in the unit.

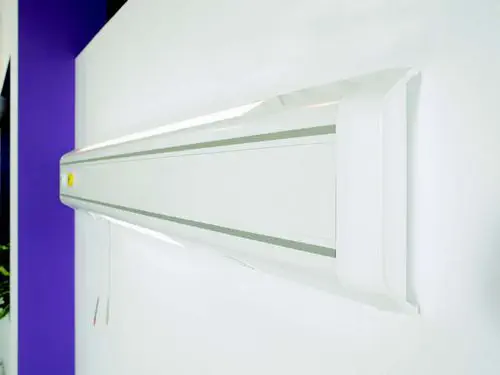

Tedisel presents evolutioned design of TDS270, with a new ABS injected side cover, withouth screws as a major change.

OPERATING MODES
The Product TEDISEL MEDICAL is not designed for operation in potentially explosive atmospheres.
Is suitable for continuous operation. -
NET WEIGHTS
Depending on the needs of the model. -
ELECTRIC DATA
Rated voltaje : - 120/230V
Rated frequency: - 60/50Hz
Rated current: - máx. 20/16A by circuit
GAS DATA
Medical gases: - Oxygen and nitrous oxide
Compressed air: - 5 bar
Compressed air supply to air motor: - 10 bar
Vacuum
Anaesthetic gas suction system. -
CLASIFICATION
Directive 93/42/EEC: no gas CLASS I / CLASS II b with gases
