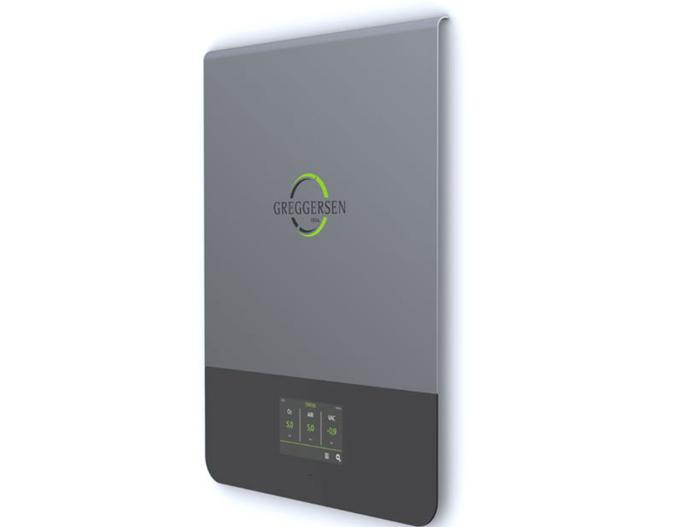

VENTUS EVO

The upper panel enables quick access to the valve units of the individual supply lines. The VENTUS evo is made entirely of high-quality powdercoated metal, which makes it robust, durable and timelessly beautiful.

slim and clean design : fits perfectly into any environment, without becoming invisible.

For More Details

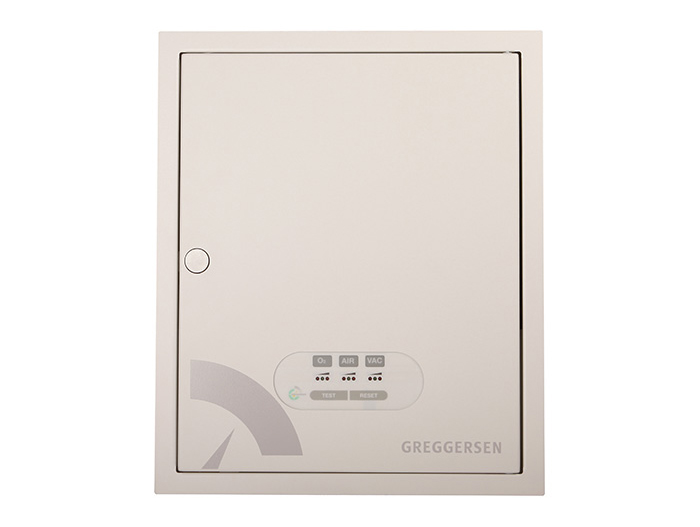

VENTUS BASIC

The Ventus shut-off valve system facilitates the targeted exclusion of individual wards or functional areas from the central gas supply system. The integrated electronics continuously monitor the pressure in the piping and visually and acoustically trigger the clinical emergency alarm. Additionally, the Ventus system has an intake point that is specific for the type of gas and is protected against unauthorized opening by means of an electronically monitored door with emergency access. Installation is suitable for flush mounting, assembly in dry walls or surface mounting.

Basic version : Door made of sheet steel, powder-coated (RAL 9016), opening > 90° via a lateral hinge.

For More Details

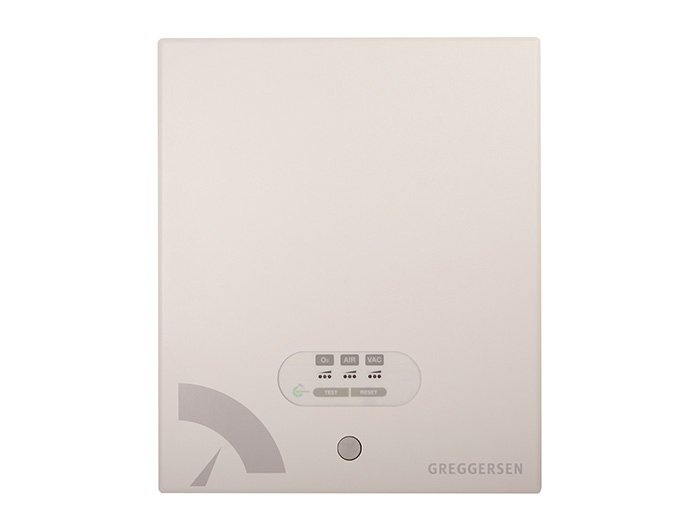

VENTUS BASIC PLUS

The Ventus shut-off valve system facilitates the targeted exclusion of individual wards or functional areas from the central gas supply system. The integrated electronics continuously monitor the pressure in the piping and visually and acoustically trigger the clinical emergency alarm. Additionally, the Ventus system has an intake point that is specific for the type of gas and is protected against unauthorized opening by means of an electronically monitored door with emergency access. Installation is suitable for flush mounting, assembly in dry walls or surface mounting. The back of the box is made of zinc-coated sheet steel.

Basic plus version : Door made of sheet steel, powder-coated, opens via an upward moving lifting mechanism.

For More Details

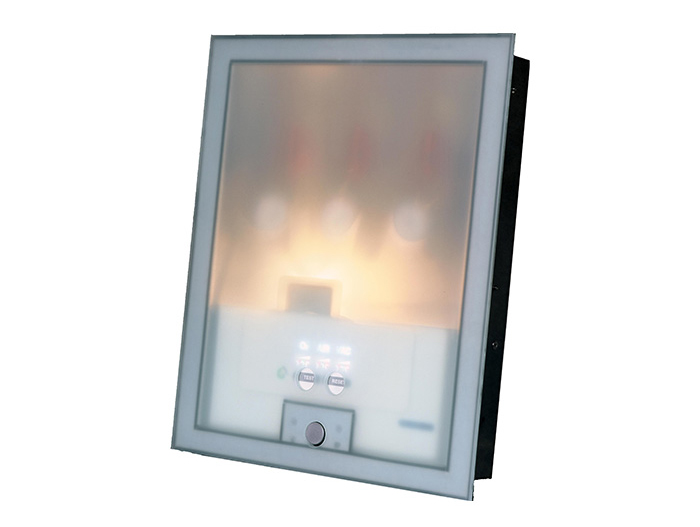

VENTUS GLASS

The Ventus shut-off valve system facilitates the targeted exclusion of individual wards or functional areas from the central gas supply system. The integrated electronics continuously monitor the pressure in the piping and visually and acoustically trigger the clinical emergency alarm. Additionally, the Ventus system has an intake point that is specific for the type of gas and is protected against unauthorized opening by means of an electronically monitored door with emergency access. Installation is suitable for flush mounting, assembly in dry walls or surface mounting. The back of the box is made of zinc-coated sheet steel.

Glass Version : Door made of milk glass with interior illumination, opens via a lifting mechanism

For More Details

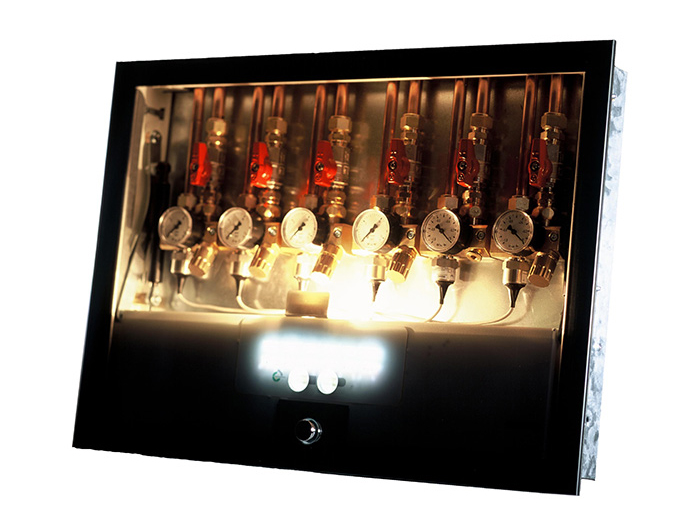

VENTUS SPY

The Ventus shut-off valve system facilitates the targeted exclusion of individual wards or functional areas from the central gas supply system. The integrated electronics continuously monitor the pressure in the piping and visually and acoustically trigger the clinical emergency alarm.

Additionally, the Ventus system has an intake point that is specific for the type of gas and is protected against unauthorized opening by means of an electronically monitored door with emergency access. Installation is suitable for flush mounting, assembly in dry walls or surface mounting. The back of the box is made of zinc-coated sheet steel.

Spy version : Door made of one-way plate glass, opens upwards via a lifting mechanism. The internal illumination turns on during an alarm making it possible to see the manometer.

For More Details
