Terminal Units
FORANO-DIN
Back
FORANO TERMINAL UNIT
The unit is used to withdraw compressed gases and vacuum from a central medical gas supply system in line with DIN EN ISO 7396-1; Anaesthetic Gas Scavenging System in line with DIN EN ISO 7396-2; integration of plugs and medical appliances with plugin connections in line with DIN 13260-2.
The terminal unit comprises a gas-specific basic block (rear part) and a connector mounting (front part) which are joined together. The front part can be adjusted (rotated). All movable parts are made of metal materials. The terminal unit thus in general has a very low-wear construction.
For More Details

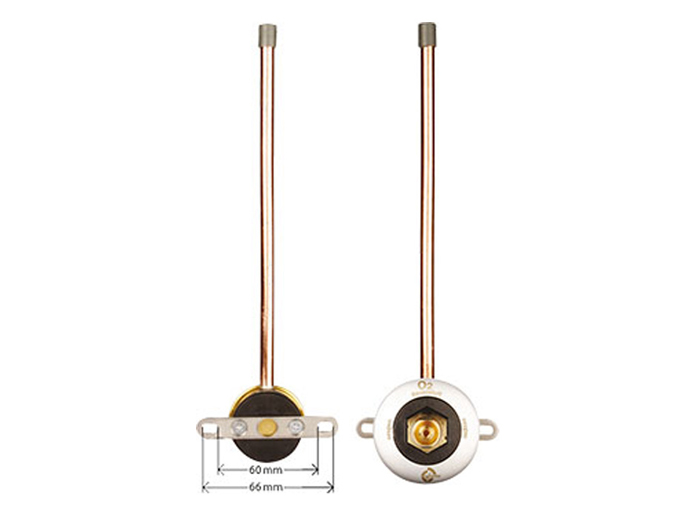

CONCEALED / HOLLOW WALL INSTALLATION
The unit is used to withdraw compressed gases and vacuum from a central medical gas supply system in accordance with EN ISO 7396–1; integration of plugs and medical appliances with plug-in connections in line with BS 5682. The Forano terminal unit complies with the requirements of ENISO 9170–1.

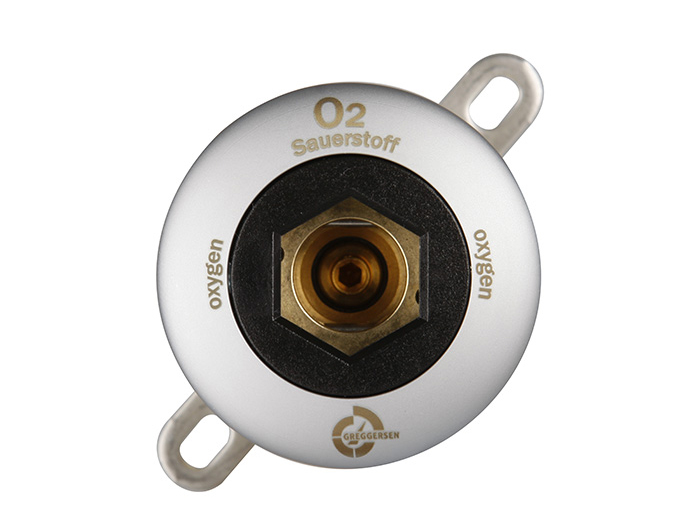

SURFACE MOUNTING
The unit is used to withdraw compressed gases and vacuum from a central medical gas supply system in accordance with DIN EN ISO 7396-1; integration of plugs and medical appliances with plug-in connections in line with DIN 13260-2. The Forano terminal unit complies with the requirements of DIN EN ISO 9170-1.
- Two-part construction: gas-specific basic block and connector mounting.
- Sophisticated design: all-metal actuator with laser labelling, front panel with wavy lines and diaphragm ring.
- Easy installation and servicing: cartridge with sealing elements, replacement possible without blocking the station.
- Unique marking: gas-type labelling – laser labelling: chemical symbol + German + English, colour coding: neutral or in line with DIN EN ISO 5359.

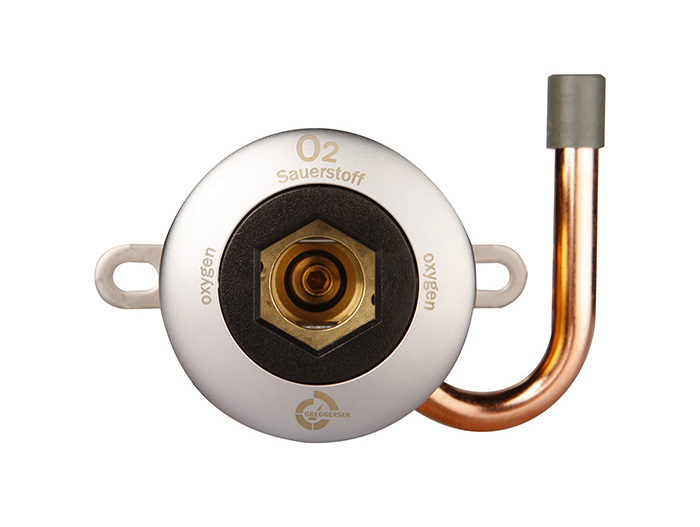

BED HEAD UNIT
The unit is used to withdraw compressed gases and vacuum from a central medical gas supply system in line with DIN EN ISO 7396-1; integration of plugs and medical appliances with plug-in connections in line with DIN 13260-2. The Forano terminal unit complies with the requirements of DIN EN ISO 9170-1.
- Two-part construction: gas-specific basic block and connector mounting.
- Sophisticated design: all-metal actuator with laser labelling, front panel with wavy lines and diaphragm ring.
- Easy installation and servicing: cartridge with sealing elements, replacement possible without blocking the station.
- Unique marking: gas-type labelling – laser labelling: chemical symbol + German + English, colour coding: neutral or in line with DIN EN ISO 5359.

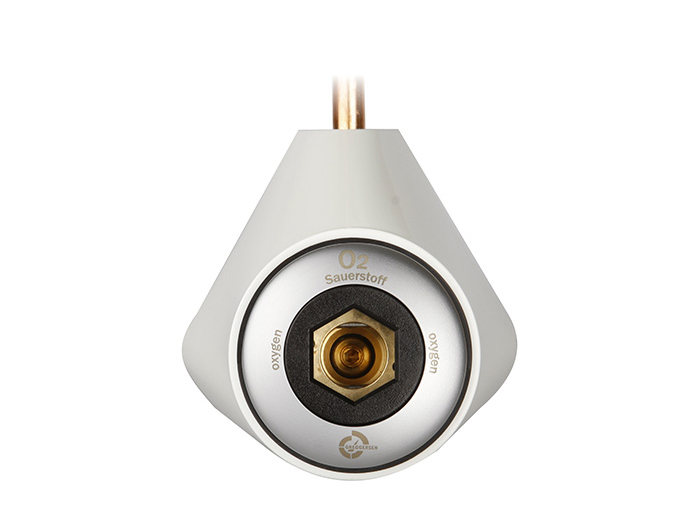

CEILING PENDANTS
The unit is used to withdraw compressed gases and vacuum from a central medical gas supply system in line with DIN EN ISO 7396-1; integration of plugs and medical appliances with plug-in connections in line with DIN 13260-2. The Forano terminal unit complies with the requirements of DIN EN ISO 9170-1.
- Two-part construction: gas-specific basic block and connector mounting.
- Sophisticated design: all-metal actuator with laser labelling, front panel with wavy lines and diaphragm ring.
- Easy installation and servicing: cartridge with sealing elements, replacement possible without blocking the station.
- Unique marking: gas-type labelling – laser labelling: chemical symbol + German + English, colour coding: neutral or in line with DIN EN ISO 5359.
BED HEAT UNIT
The unit is used to withdraw compressed gases and vacuum from a central medical gas supply system in line with DIN EN ISO 7396-1; integration of plugs and medical appliances with plug-in connections in line with DIN 13260-2. The Forano terminal unit complies with the requirements of DIN EN ISO 9170-1.
- Two-part construction: gas-specific basic block and connector mounting.
- Sophisticated design: all-metal actuator with laser labelling, front panel with wavy lines and diaphragm ring.
- Easy installation and servicing: cartridge with sealing elements, replacement possible without blocking the station.
- Unique marking: gas-type labelling – laser labelling: chemical symbol + German + English, colour coding: neutral or in line with DIN EN ISO 5359.

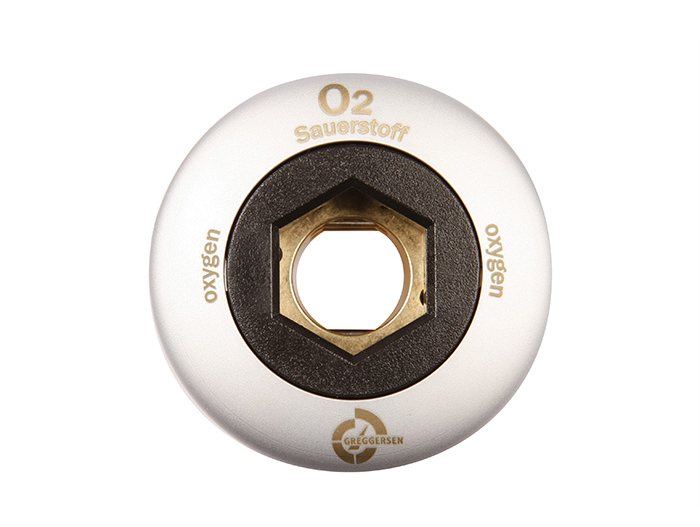

FRONT PARTS TERMINAL UNIT
Each gas-specific front part contains the following components:
- Actuator
- Cartridge
- Gas-specific socket unit
- Warning label (not ready for operation)

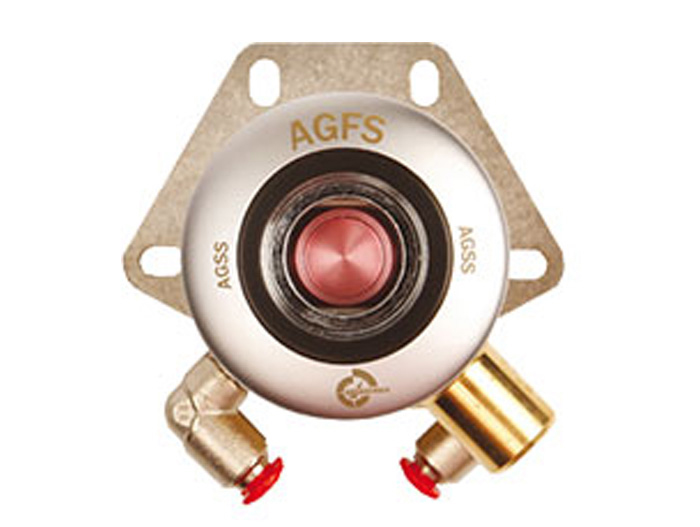

ANAESTHETIC GAS SCAVENGING SYSTEM
System for safe disposal of excess anaesthetic gases and anaesthetic vapours from the clinical environment within a central medical gas supply system in line with DIN EN ISO 7396-2.
All-metal construction, symbols for monitoring operation, with external ejector for vacuum generation. Suction adjustable; single-handed operation when connecting and disconnecting, unlocking via the connector receptacle. Fully mounted in a stainless steel casing, with stainless steel front panel (for concealed or hollow wall installation). Design complies with DIN EN ISO 9170-2.
For More Details

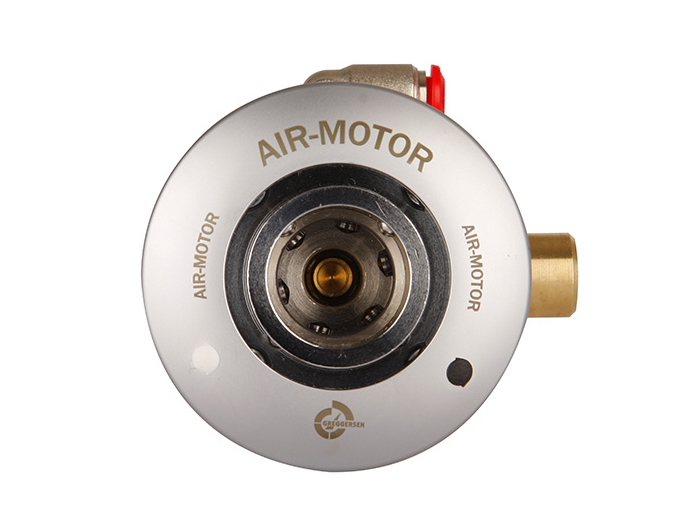

AIR-MOTOR
Terminal unit for supplying and disposing of air used to operate surgical tools. A combination of an outlet assembly (for supply) and an inlet assembly (for disposal), which is connected to a supply and disposal system in line with DIN EN ISO 7396-1. A non-return valve in the disposal system prevents return flow of consumed air. Design complies with DIN EN ISO 9170-1. Integration of plugs and medical appliances with plug-in connections in line with DIN 13260-2.
For More Details
