- Two-part construction: gas-specific basic block and socket unit

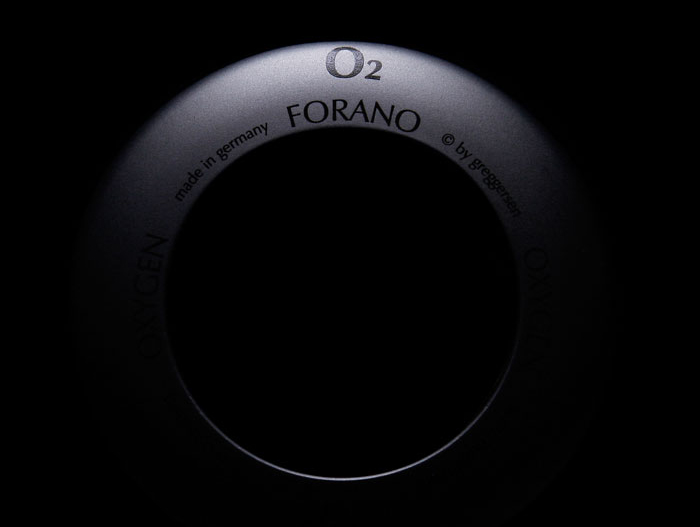

- Sophisticated design: all-metal actuator with laser labelling; front panel with wavy lines and diaphragm ring
- Easy installation and servicing: cartridge with sealing elements, replacement possible without blocking the station
- Unique marking: gas-type labelling – laser labelling: chemical symbol + English; colour coding: in line with ISO32
- +91-474-2521003 +91 9544372774
- hitechmedgassolutions@gmail.com
Terminal Units
FORANO-BS
Back

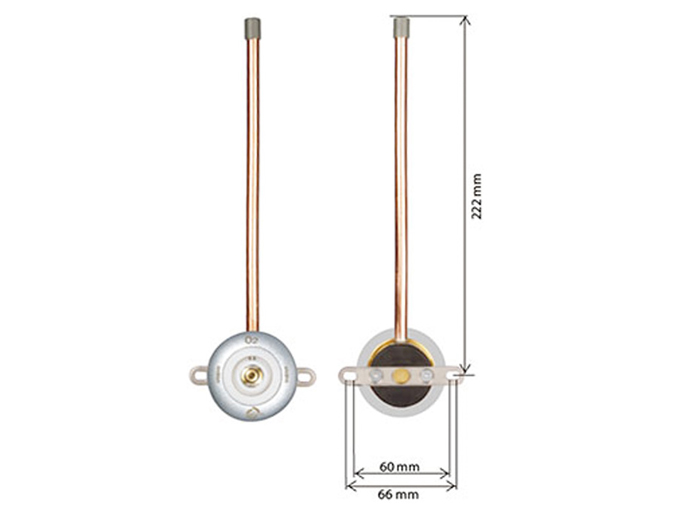

CONCEALED / HOLLOW WALL INSTALLATION
The unit is used to withdraw compressed gases and vacuum from a central medical gas supply system in accordance with EN ISO 7396–1; integration of plugs and medical appliances with plug-in connections in line with BS 5682. The Forano terminal unit complies with the requirements of ENISO 9170–1

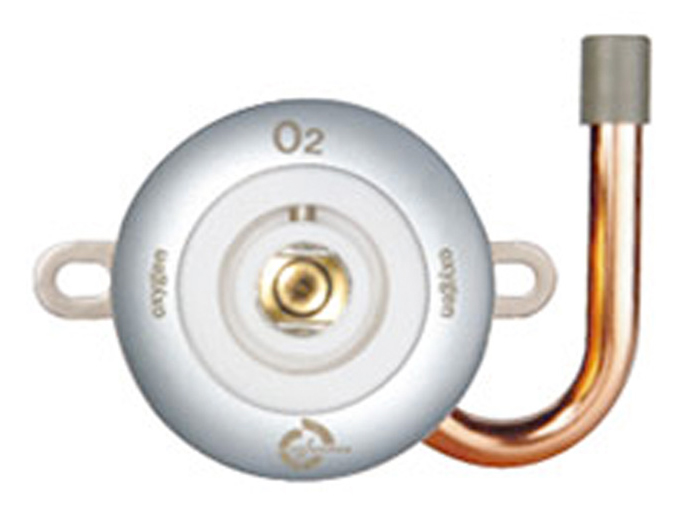

SURFACE MOUNTING
The unit is used to withdraw compressed gases and vacuum from a central medical gas supply system in accordance with EN ISO 7396–1; integration of plugs and medical appliances with plug-in connections in line with BS 5682. The Forano terminal unit complies with the requirements of ENISO 9170–1.
- Two-part construction: gas-specific basic block and socket unit
- Sophisticated design: all-metal actuator with laser labelling; front panel with wavy lines and diaphragm ring
- Easy installation and servicing: cartridge with sealing elements, replacement possible without blocking the station
- Unique marking: gas-type labelling – laser labelling: chemical symbol + German + English; colour coding: in line with ISO32
BED HEAD UNIT
The unit is used to withdraw compressed gases and vacuum from a central medical gas supply system in accordance with ENISO 7396–1; integration of plugs and medical appliances with plug-in connections in line with BS5682. The Forano terminal unit complies with the requirements of ENISO 9170–1.
- Two-part construction: gas-specific basic block and socket unit
- Sophisticated design: all-metal actuator with laser labelling; front panel with wavy lines and diaphragm ring
- Easy installation and servicing: cartridge with sealing elements, replacement possible without blocking the station
- Unique marking: gas-type labelling – laser labelling: chemical symbol + English; colour coding: in line with ISO32

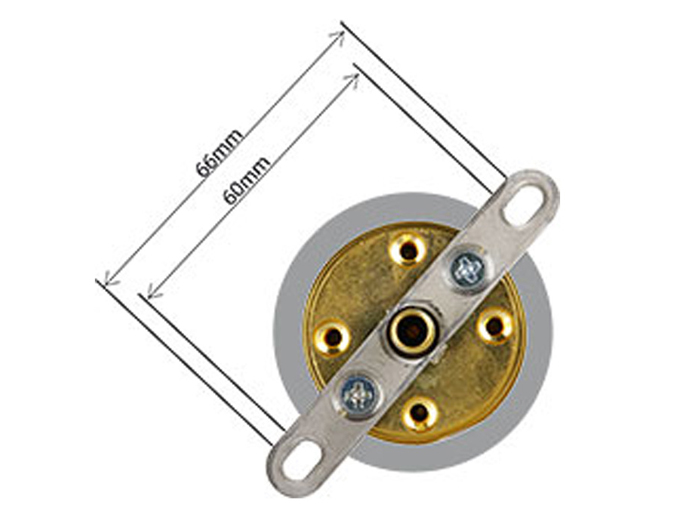

CEILING PENDANTS
The unit is used to withdraw compressed gases and vacuum from a central medical gas supply system in accordance with EN ISO 7396–1; integration of plugs and medical appliances with plug-in connections in line with BS 5682. The Forano terminal unit complies with the requirements of ENISO 9170–1.
- Two-part construction: gas-specific basic block and socket unit
- Sophisticated design: all-metal actuator with laser labelling; front panel with wavy lines and diaphragm ring
- Easy installation and servicing: cartridge with sealing elements, replacement possible without blocking the station
- Unique marking: gas-type labelling – laser labelling: chemical symbol + English; colour coding: in line with ISO32
BED HEAD UNIT (E.G. TRILUX VS 100)
The unit is used to withdraw compressed gases and vacuum from a central medical gas supply system in accordance with EN ISO 7396–1; integration of plugs and medical appliances with plug-in connections in line with BS 5682. The Forano terminal unit complies with the requirements of ENISO 9170–1.
- Two-part construction: gas-specific basic block and socket unit
- Sophisticated design: all-metal actuator with laser labelling; front panel with wavy lines and diaphragm ring
- Easy installation and servicing: cartridge with sealing elements, replacement possible without blocking the station
- Unique marking: gas-type labelling – laser labelling: chemical symbol + English; colour coding: in line with ISO32

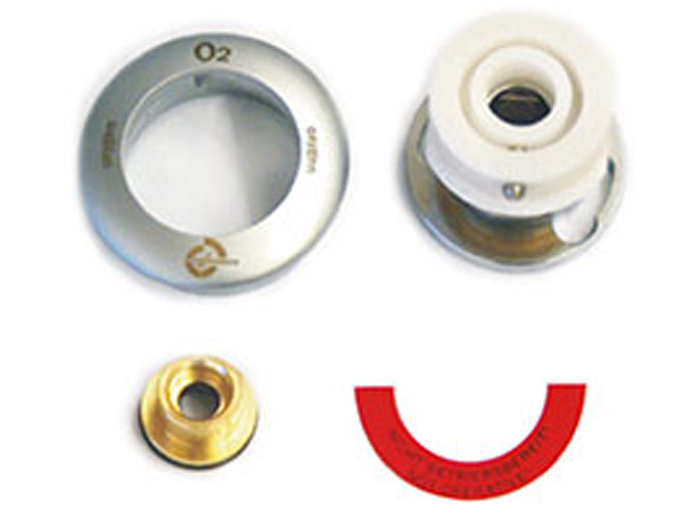

FRONT PARTS
Each gas-specific front part contains the following components:
- Actuator
- Cartridge
- Gas-specific socket unit
- Warning label (not ready for operation)

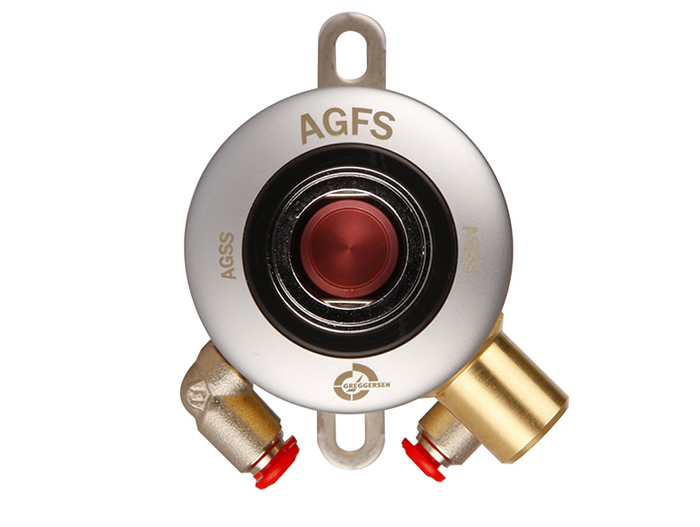

ANAESTHETIC GAS SCAVENGING SYSTEM
System for safe disposal of excess anaesthetic gases and anaesthetic vapours from the clinical environment.
All-metal construction, symbols for monitoring operation, with external ejector for vacuum generation. Suction adjustable single-handed operation when connecting and disconnecting, unlocking via the connector receptacle. Fully mounted in a stainless steel casing, with stainless steel front panel (for concealed or hollow wall installation). Design complies with the requirements of EN ISO 9170-2.
For More Details

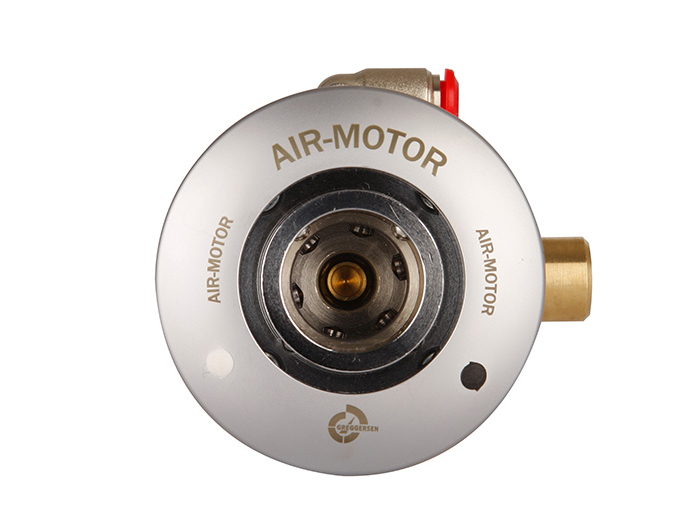

AIR-MOTOR
Terminal unit for supplying and disposing of air used to operate surgical tools. A combination of an outlet assembly (for supply) and an inlet assembly (for disposal), which is connected to a supply and disposal system. A non-return valve in the disposal system prevents return flow of consumed air.
For More Details
TOOLS AND ACCESSORIES

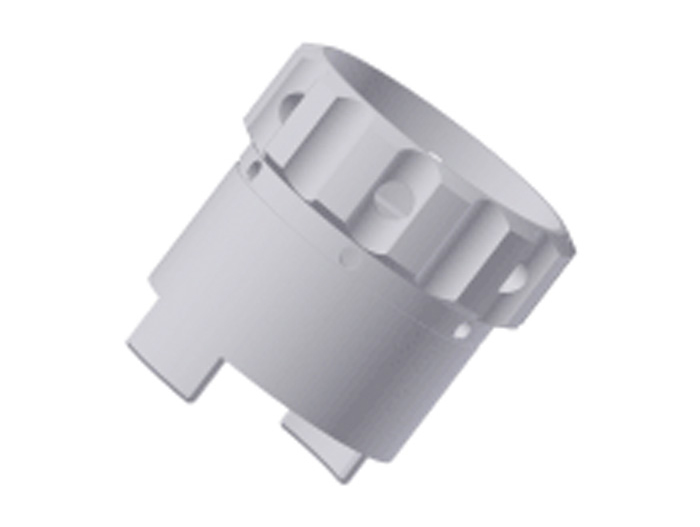

Forano height adjustment : In the variant for concealed / hollow wall installation, the basic block is seated in a ring follower. After installation of the housing, the mounting tool can subsequently be used to adjust the mounting depth of the basic block.
Forano leak test : For performing the leak test in line with DIN EN ISO 7396-1. The blind flange is screwed to the basic block and closes up the terminal unit. The test pressure can then be used to check the pipe system for leaks.
