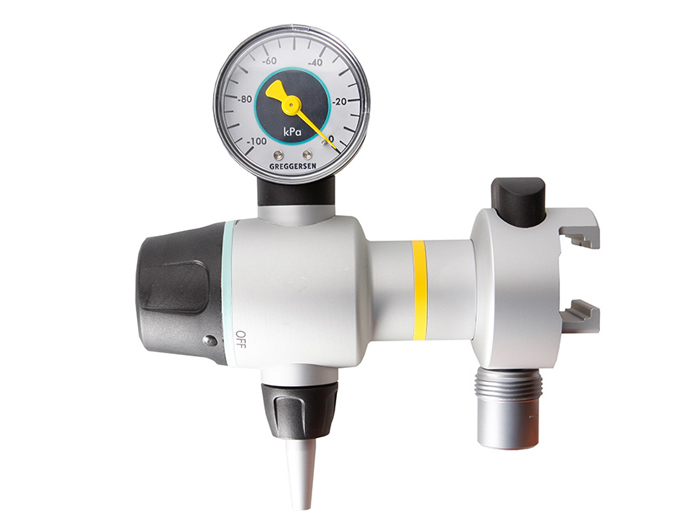

PIROL VACUUM REGULATOR – PLUG-IN DEVICE

Medical vacuum regulator for suction dosing; with vacuum gauge and fine dosing valve; plug-in device for direct coupling to a DIN outlet; the fine dosing valve provides continuously variable vacuum regulation. Reliable manometer reading with 360° mount rotation. Pirol regulator units comply with the DIN EN ISO 10079-3 specifications. All vacuum regulators must be operated with an overflow bottle!

PIROL VACUUM REGULATOR – RAIL-MOUNTED DEVICE

Medical vacuum regulator for suction dosing; with vacuum gauge and fine dosing valve; rail-mounted device incl. rail clamp for attachment to standard device rail 25x10 mm; vacuum inlet integrated in rail clamp (NIST). The fine dosing valve provides continuously variable vacuum regulation.

Reliable manometer reading with 360° mount rotation. Pirol regulator units comply with the DIN EN ISO 10079-3 specifications. All vacuum regulators must be operated with an overflow bottle!

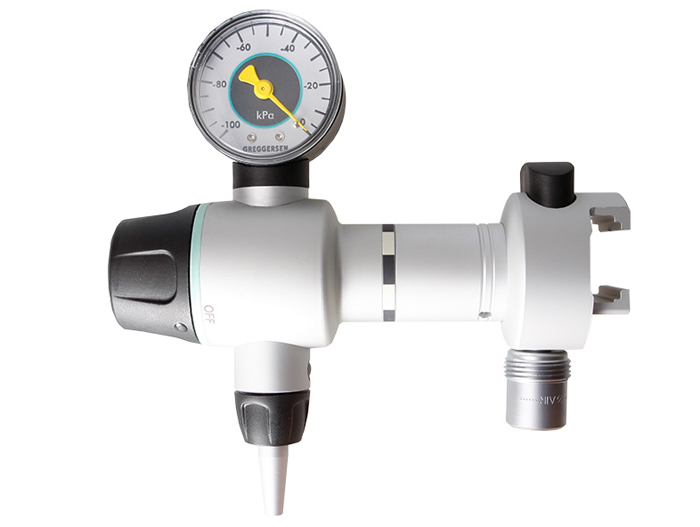

SKUA VACUUM REGULATOR – PLUG-IN DEVICE

Medical vacuum regulator based on a compressed air ejector for vacuum generation; plug-in device for direct coupling to a DIN outlet; including vacuum gauge, fine dosing valve and overpressure safety feature.

Waste air bacteria filter acts also functions as a silencer; the fine dosing valve provides continuously variable vacuum regulation. Reliable manometer reading with 360° mount rotation. Skua regulator units comply with the DIN EN ISO 10079-3 specifications.

SKUA VACUUM REGULATOR – RAIL-MOUNTED DEVICE

Medical vacuum regulator based on a compressed air ejector for vacuum generation; rail-mounted device incl. rail clamp for attachment to standard device rail 25x10 mm; compressed air inlet integrated in rail clamp (NIST);

ncluding vacuum gauge, fine dosing valve and overpressure safety feature. Waste air bacteria filter acts also functions as a silencer. The fine dosing valve provides continuously variable vacuum regulation. Reliable manometer reading with 360° mount rotation. Skua regulator units comply with the DIN EN ISO 10079-3 specifications.

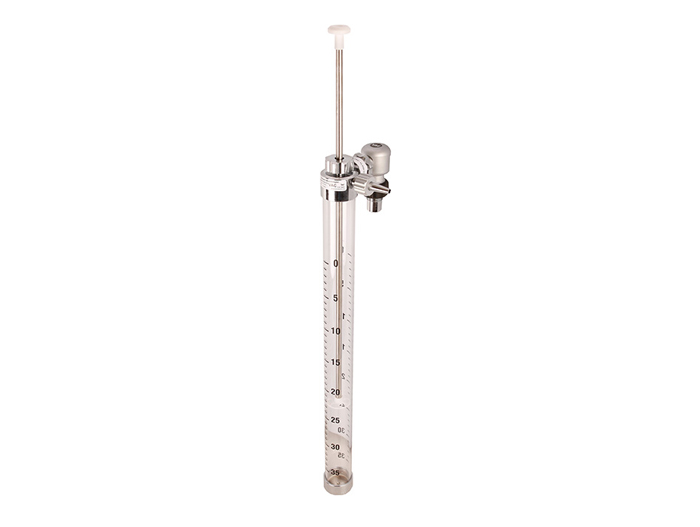

SWAN WATER VACUUM REGULATOR

For continuous drainage and fine water-column regulation of vacuum; with in- tegrated control valve. Can be supplied as a plug-in device for direct coupling to a vacuum outlet or as a rail-mounted device, NIST housing inlet. The integrated control valve releases the vacuum flow to generate the required suction vacuum. When air bubbles become visible at the bottom end of the immersion tube the immersion tube vacuum setting is reached. If there is no vacuum, it can be gene- rated from compressed air using an ejector. See Skua Regulator Units.

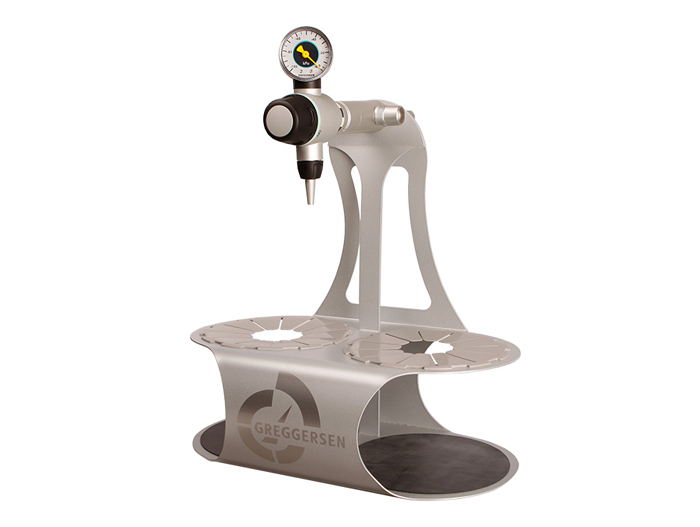

VARIOPORT SUCTION UNIT

Portable medical vacuum suction unit with fittings for connection of 2 secretion collection containers. The container fitting is universal. Standard 0.5-3.0 liter containers from different manufacturers can be used (e.g. Serres, Abbott, Medela, Ardo, Cardinal and many others).

The rack features a stable handgrip and a mount for standard device rails 25x10 mm and 30x10 mm.The vacuum regulator unit is located at the front for rapid and direct operator access. The NIST gas inlet is located at the rear of the unit, thus positioning the supply hose outside of the working area. The regulator units Pirol and Skua comply with the DIN EN ISO 10079-3 specifications..

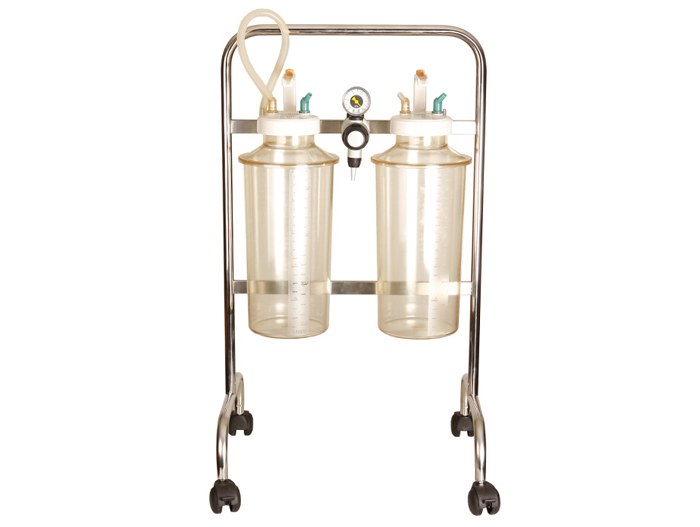

MOBILE SUCTION UNIT

Mobile medical surgical suction unit for vacuum-driven or compressed air-driven operation including suction flowrate regulator, fine dosing valve, mobile rack for 2 5-liter bottles (secretion collection bottle with integrated overflow protection).

A rail clamp is integrated in the lid of the secretion bottle for attachment to a standard device rail. The fine dosing valve provides continuously variable vacuum regulation. Reliable manometer reading with 360° mount rotation. The entire unit is mounted on a mobile rack. Vacuum / compressed air inlet integrated in the rail clamp (NIST housing); Pirol and Skua regulator units comply with the DIN EN ISO 10079-3 specifications.

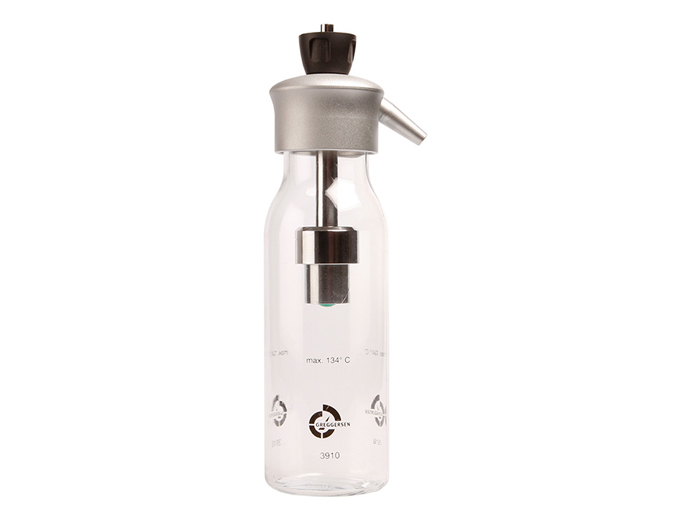

ACCESSORIES - FOR VACUUM REGULATORS PIROL AND SKUA

Secretion overflow bottle (250 ml) to protect the vacuum regulator against oversuc- tion with secretion or body fluids.
